Human Powered Vehicle

Project Description

For those who seek an alternative transportation to conventional automotive options, our team’s goal is to produce a cheap and efficient Human Powered Vehicle with the comforts of a car and the simplicity of a bike. The project is to be completed before May 1, 2019

Freehand sketch of basic recumbent bike

Weekly Progress

  • Apr. 22: After the last minute additions of a speedometer and our sponsor stickers our competition was upon us. On April 25, we went head to head with the ME’s group and their vehicle. Scoring was based on the factors listed below:

                Aesthetics, which bike looks the best. See pics here!

                Manufacturability: the ability to easily recreate the project based on component complexities.

                Tipping angle, measured with a protractor to the angle at which the vehicle would fall over under its own weight.

                Weight, measured using a set of scales.

                Braking distance from a speed of 15 mph to a standstill.

                Safety factors such as harness integrity.

                Traffic integration, blinkers, head/tail lights, mirrors, etc…

                And weatherproofing.

Also part of the competition were a hill climb and an agility course time trial event. Unfortunately, the ME team’s vehicle suffered a mechanical failure and had to cede victory to us on the hill climb and breaking distance portions of the competition. The agility course was recorded however and can been viewed below.

  • April. 8: After welding was completed, things really kicked into high gear. With a mild break for report writing purposes, the vehicle underwent quite a few changes since the last update. Quick summary:

             Added drop bars to Roll Cage to assist balancing on vehicle’s side.

             Procured and affixed Plexiglass for use as a windshield.

             Procured and affixed Plywood for use as flooring and storage space.

            Utilized bent PVC piping as fenders for front wheels.

            Used additional Plexiglass as drop bar panel.

            Modified shower curtains for use as doors/sidewalls.

            Painted Roll Cage and fenders black.  Also painted all wooden surfaces red.

            Purchased taillight/blinker combo unit and extended the wires to meet control area.

            Sewed zippers on aforementioned shower curtain panels to serve as doors.

         See our pictures here!

  • Mar. 4: With the help of Allweld Fabrication and Supply in Old Town, we constructed and welded the Roll Cage to the trike frame.

         See our pictures here!

  • Feb. 25: Worked on and presented the Roll Cage design for class. Modeled all parts in SolidWorks and ran Finite Element Analysis (FEA) on the Roll Cage proper.

         See our pictures here!

  • Feb. 18: Picked up threaded connections (pipe fittings) and stock material for roll cage. Stock material was then threaded for use with the pipe fittings.

         See our pictures here!

  • Feb. 11: After much deliberation the team has decided to utilize the existing frame of the donated trike as a base for our project. The frame was modeled into SolidWorks as seen below, and the roll cage design will be mounted upon it going forward. In addition, parts are being ordered this week and we hope to begin construction ASAP.
Donated Trike Frame Model
  • Dec. 3: Ran Finite Element Analysis on frame model in SolidWorks. Narrowed scope of project direction down to Tadpole Trike recumbent trike base. Retrieved recumbent trike graciously donated by the Campbell family from Saco, ME.

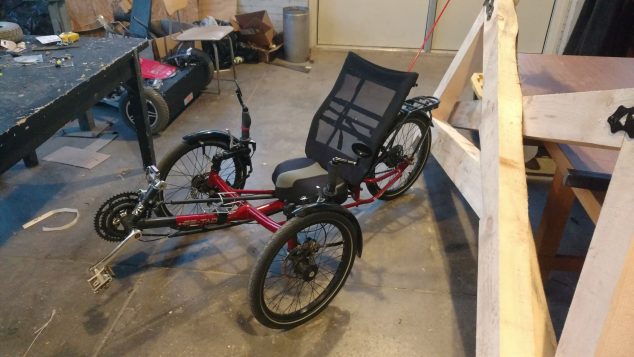

Fully operational recumbent bike to be modified and utilized
  • Nov. 26: Set out to gather additional sponsors and contributors. Narrowed scope down to two frame options. Began construction of Mark 3 K’nex® Prototype. Secured part donations from several local businesses.

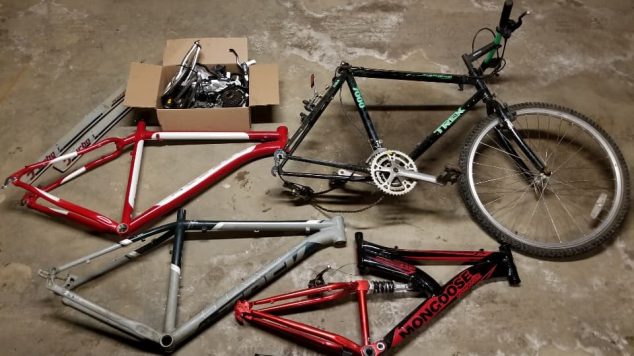

Misc. parts donated by local businesses. An additional bike was donated but is not shown
SolidWorks Modeled Steering System

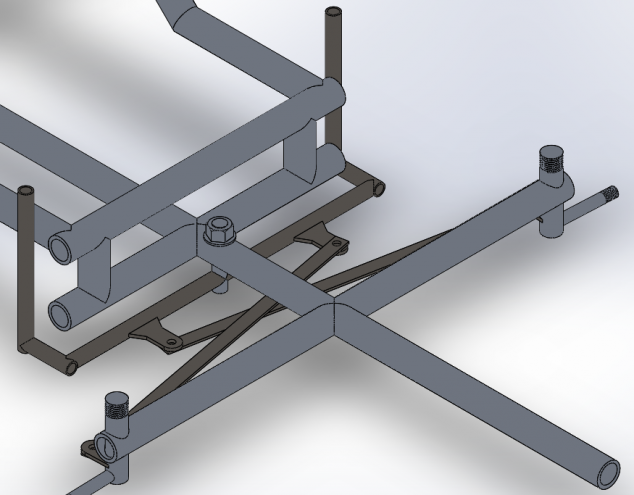

K'nex® Prototype Mark 3 Steering System
  • Nov. 19: Thanksgiving Week. Alex created a prototype frame using K’nex®. The Mark 2 design includes storage area above rear wheel and a functioning steering system.
K'nex® Prototype Mark 2 Right Side
K'nex® Prototype Mark 2 Left Side
  • Nov. 12: Began simple frame design. Discussed welding, beam bending, and door options.

Sponsors

The University of Maine MET Department https://umaine.edu/met/

Additional Donors

Rose Bike Shop. Orono, ME https://www.rosebike.com/

Slipping Gears Cycling. Bangor, ME https://www.slippinggears.com/

Ski Rack Sports. Bangor, ME https://skiracksportsme.com/

Pat’s Bike Shop. Brewer, ME https://patsbikeshop.wordpress.com/



Sean and Alicia Campbell

Honorable Mentions

  • Quinn Campbell for his assistance with the Finite Element Analysis
  • Allweld Supply and Fabrication in Old Town, ME for assistance in the welding of the Roll Cage

Special thanks and considerations for

Our arms, for always being by our side.

Our legs, for always supporting us.

And our fingers, because we could always count on them.
