Thermoplastic Fabrication of Scaled Vertical Axis Windturbines – Team 2

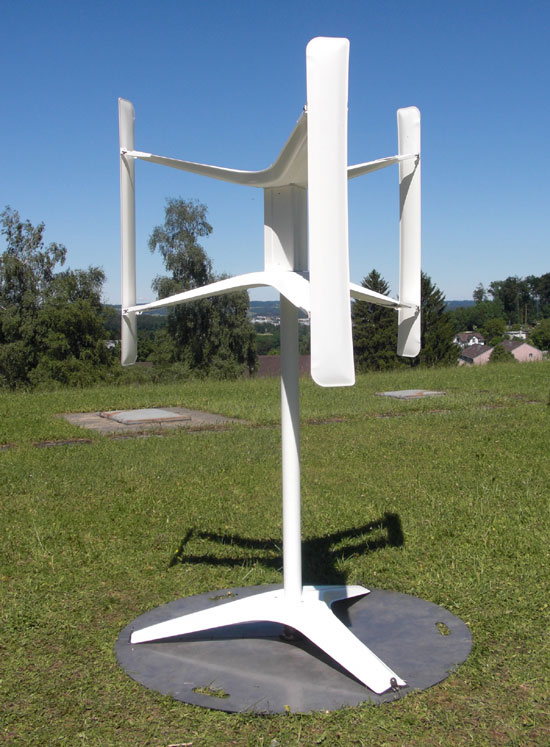

Example of a H-Rotor style Vertical Axis wind turbine showing forces acting on blades and location of generator
H-Rotor style vertical axis wind turbine

About the project:

This project focuses on researching thermoplastics and fiber reinforced composites for the fabrication of a scaled Vertical axis wind turbine. The wind turbine will be scaled to 1:50 of an industrial sized. The students are responsible for the research of design and materials, design of blades and system based on clients’ needs, and design of fabrication methods. The type of vertical axis wind turbine that was chosen by the client is a H Rotor style shown in the image above. The blades for the H Rotor style wind turbine are designed to have a symmetric cross-section (meaning no curvature along the length of the blade). For the dimensions, the diameter of the blades will be 2.2 meters, the overall height of the system will be 2.2 meters, the chord length (connecting chord from blade to central shaft) is .09 meters, and center of the hub to the center of the blade is 1.1 meters. According to clients’ specifications the overall weight of the system cannot exceed 4.8 kg (9.6 lbs.).


Weekly updates:

Week 12 (11/8 – 11/15)

Based on clients’ specifications the team needed to research different materials for the airfoil blades and determine a new fabrication method. Design of the airfoil is being done in Solidedge. Below is an image of the print for the specified airfoil shape.
